In the congested subterranean environment of London and the UK’s major cities, the margin for error during excavation is non-existent. One strike on a high-voltage cable or a gas main results in catastrophic project delays, massive fines, and serious risk to life. Traditional mechanical excavation using buckets and hydraulic arms is increasingly seen as too high-risk for utility-dense zones. This shift in safety protocols brings us to a pivotal question in modern civil engineering: what is vacuum excavation?

Often referred to as “suction excavation” or non-destructive digging, this technology has moved from a niche solution to a primary method for safe groundworks. Understanding what is vacuum excavation is essential for any contractor, surveyor, or project manager aiming to comply with HSG47 (Avoiding Danger from Underground Services).

Defining the Technology: What Is Vacuum Excavation?

Technically speaking, what is vacuum excavation? It is a non-invasive excavation method that utilizes high-velocity airflow to loosen and extract soil, aggregate, and debris. Instead of mechanically tearing through the ground with a metal bucket, we use a precision-controlled air column.

When a client asks what is vacuum excavation, we explain it as the safest way to expose underground infrastructure. The equipment generates a massive vacuum force that pulls material through an intake hose into a spoil tank mounted on a purpose-built truck. It allows us to excavate around live cables, fibre optics, and sensitive tree roots without making physical contact with them. In the context of urban regeneration projects where “as-built” drawings are often inaccurate, what is vacuum excavation represents the only reliable method for visual verification of assets.

The Mechanics: How Does Vacuum Excavation Work?

The physics behind the process distinguishes it from any other form of earthmoving. How does vacuum excavation work involves a twin-fan or triple-fan system creating an immense negative pressure.

We deploy a remote-controlled intake arm, typically 250mm in diameter. An operator directs the nozzle at the ground. To break up compacted soil—especially the stubborn London Clay or rocky fill—we use a compressed air lance (or “air spade”). This injects high-pressure air into the soil matrix, fracturing it safely. The vacuum then lifts the loosened material.

So, how does vacuum excavation work in terms of filtration? The extracted material travels into the truck’s main chamber. The airflow is separated from the solids via a complex micronic filtration system, ensuring that only clean air is exhausted back into the atmosphere, while the spoil is contained for disposal. It is a closed-loop system that minimizes dust and environmental impact.

Strategic Applications: What Is Vacuum Excavation Used For?

The versatility of this method is driving its adoption across the sector. What is vacuum excavation used for primarily? The most common application is digging “trial holes” or slit trenches to positively identify the depth and location of utilities before a piling rig or excavator begins work.

However, what is vacuum excavation used for extends beyond simple utility clearance. It is invaluable for:

• Tree Root Protection: Excavating around protected trees (TPOs) without severing root systems.
• Deep Excavation: Reaching depths that are unsafe for personnel to enter, removing material from deep shafts or catchpits.
• Substation Works: Working safely inside live electrical substations where metal tools are prohibited.
• Rail and Tramworks: Clearing ballast quickly without damaging the sleepers or track infrastructure.

Operational Efficiency: How Long Does Vacuum Excavation Take?

Time is a critical resource in construction programming. How long does vacuum excavation take compared to traditional hand digging? The difference is exponential.

A vacuum excavator can move between 2 to 4 cubic meters of material per hour, depending on the ground conditions. If you task a two-man team to hand-dig a trial hole in compacted ground, it might take a full day to reach a depth of 1.5 meters safely. How long does vacuum excavation take to achieve the same result? Often less than 45 minutes.

Furthermore, because the spoil is instantly contained within the vehicle, there is no need for skips or dumper trucks to manage the arisings immediately. The site remains clean, and the reinstatement process can begin sooner. When asking how long does vacuum excavation take, one must also factor in the time saved by avoiding utility strikes—which can shut down a site for weeks.

A Balanced View: What Are The Disadvantages of Vacuum Excavation?

Despite its clear superiority in safety and speed, it is not a magic wand for every scenario. We must be realistic about what are the disadvantages of vacuum excavation?

Firstly, cost. The daily rate for a vacuum excavator is significantly higher than a standard 3-tonne digger. However, this is often offset by the speed of work and risk mitigation.

Secondly, what are the disadvantages of vacuum excavation? involves logistics. The trucks are large—often 26-tonne or 32-tonne heavy goods vehicles. Accessing tight mews streets in Central London or residential driveways can be challenging or impossible without road closures.

Thirdly, noise. These machines generate high airflow, which creates significant noise pollution. While modern units have sound dampening, they are louder than a mini-digger, which can be an issue in residential areas with strict working hours.

Conclusion

In the modern construction landscape, what is vacuum excavation? It is the benchmark for safe digging practice. While it requires careful planning regarding access and budget, the ability to excavate rapidly without risking the integrity of the UK’s complex utility network makes it an indispensable tool for groundworks professionals.

Before the first foundation trench is dug or the piling rig arrives on site, a critical phase of construction must be executed. In the dense urban environment of London and the South East, we rarely have the luxury of starting with a pristine “greenfield” site. Instead, we deal with brownfield land, overgrown plots, or sites littered with the remnants of previous structures. To transform these chaotic spaces into viable construction zones, we must engage in what is site clearance.

It is a term that encompasses far more than simply “tidying up.” What is site clearance is a regulated, heavy-duty operation that forms the backbone of the enabling works package. Without it, the construction programme cannot commence.

Defining the Scope: What Is Site Clearance?

At its core, what is site clearance? It is the systematic removal and disposal of waste materials, vegetation, and surface debris from a designated area to prepare it for development. However, in a professional context, the scope is much broader.

When a client asks what is site clearance, they are often surprised by the extent of the works. It involves the grubbing out of tree roots, the demolition of minor structures (like garages or boundary walls), and the stripping of topsoil. It also includes the removal of “muck”—the surplus inert material that must be carted away to licensed landfill or recycling centers. In the UK, strict environmental regulations govern what is site clearance, ensuring that waste is segregated into inert, non-hazardous, and hazardous streams.

The Industrial Context: What Is Site Clearance in Construction?

For a main contractor or a developer, the definition shifts slightly. What is site clearance in construction represents the first major risk reduction phase of a project. It is about creating a safe, level, and accessible platform for the subsequent trades.

Specifically, what is site clearance in construction often involves dealing with subterranean obstacles. We are talking about breaking out old concrete slabs, removing redundant drainage runs, and identifying contamination hotspots. In London, where industrial history runs deep, this can mean dealing with asbestos-containing materials (ACMs) or hydrocarbon-contaminated soil.

Therefore, what is site clearance in construction is not just about excavation; it is about compliance with the Construction (Design and Management) Regulations (CDM). It ensures that when the groundworkers arrive to pour the footings, they are not met with unforeseen hazards.

The Rationale: Why Is Site Clearance Necessary?

Project managers sometimes view clearance as a sunken cost, but it is an investment in efficiency. Why is site clearance necessary? Primarily for Health and Safety. A site cluttered with rubble, sharp metal, and organic waste is a minefield for accidents. Slips, trips, and falls remain a leading cause of injury in our sector.

Furthermore, why is site clearance necessary from a logistical standpoint? You cannot accurately survey a site that is covered in debris. Topographical surveys require a clear line of sight to ground level. If you skip this step, your levels will be wrong, your volume calculations for concrete will be inaccurate, and your project will face delays. Additionally, heavy plant machinery—360 excavators and piling rigs—requires a stable, clear running surface. Attempting to operate heavy equipment on a debris-filled site is negligence.

Managing Expectations: How Long Does Site Clearance Take?

Time is money in construction, so the schedule is always scrutinized. How long does site clearance take? This is the most common question we field during the tender stage. The answer depends entirely on the site constraints and the volume of material.

For a standard residential plot in a London borough, how long does site clearance take? Typically, between one to three days using a grab lorry and a 3-tonne excavator. However, for a commercial brownfield site with significant demolition arisings and contaminated soil that requires testing and separation, how long does site clearance take can extend to several weeks.

Factors such as site access (narrow mews streets vs. main roads), the presence of Japanese Knotweed (which requires a specific management plan), and the turnaround time for soil analysis reports all influence the timeline.

Conclusion

Ultimately, what is site clearance? It is the process of resetting the clock on a piece of land. It transforms a liability into an asset ready for development. Whether you are building a rear extension or a new housing estate, understanding what is site clearance and allocating the correct budget and time to it is the first step toward a successful build. It ensures that your project is built on solid ground, both literally and legally.

The discovery of subsidence affects thousands of property owners across the UK every year, particularly those situated on the shrinkable clay soils of London and the South East. The immediate association with subsidence is often heavy engineering, significant disruption, and exorbitant costs. The prevailing assumption is that concrete must be poured beneath the foundations to save the structure. However, this is not always the case. In fact, a significant proportion of subsidence claims are resolved through less invasive means.

The critical question for any surveyor or structural engineer assessing a shifting property is: can subsidence be fixed without underpinning? The answer depends entirely on the root cause of the movement. Understanding the geology and the external factors affecting the soil is paramount before any remedial strategy is proposed.

Diagnosing the Root Cause

Before we can determine can subsidence be fixed without underpinning, we must identify why the ground is moving. Subsidence is the downward movement of the ground supporting the building’s foundations. In the London area, this is predominantly caused by two factors: soil desiccation due to vegetation or the softening of the ground caused by escaping water from defective drains.

If the structural movement is historic and the ground has stabilized, cosmetic repairs may be all that is required. However, if the movement is progressive, we must intervene. The industry standard is to monitor the crack widths and levels over a period, usually 12 months, to understand the seasonal cycles. This data dictates the solution. In many instances involving tree-related clay shrinkage, can subsidence be fixed without underpinning? Yes, frequently.

Drainage Repairs and Soil Stabilisation

A common culprit for localized subsidence in Victorian and Edwardian terraces is a compromised drainage system. Old clay pipes often crack or displace due to root ingress or ground movement. Water leaks into the subsoil, washing away the “fines” (fine particles of soil) or softening the ground to the point where it can no longer support the foundation load.

In this scenario, can subsidence be fixed without underpinning? Absolutely. The priority is to repair the drains. Modern Cured-In-Place Pipe (CIPP) lining techniques or patch repairs can seal the system without the need for excavation. Once the source of the water is eliminated, the ground is often capable of regaining its load-bearing capacity over time. We stabilize the environment, and the building stabilizes with it. This is a far more cost-effective and less disruptive route than structural intervention.

Vegetation Management: The Arboricultural Solution

The highly plastic London Clay is notorious for shrinking when it dries out. Large trees—particularly Oaks, Willows, and Poplars—extract immense volumes of moisture from the soil during the summer months. This causes the clay volume to reduce, and the foundations drop.

When a surveyor asks can subsidence be fixed without underpinning, the first place they look is the garden. If a tree is within the zone of influence, removing or heavily pruning the tree can allow the soil to rehydrate and recover. This process, known as heave recovery, must be managed carefully by an arboriculturist and a structural engineer to prevent upward movement that could cause fresh damage. However, statistically, vegetation management resolves a vast number of subsidence cases without a single drop of concrete being poured.

The Role of Resin Injection

Innovation in geopolymer technology has provided another answer to the question can subsidence be fixed without underpinning. Resin injection involves pumping a structural expansive polymer into the ground beneath the footings. The material expands, fills voids, and compacts the weak soil, increasing its bearing capacity.

This method is rapid, clean, and often completed within a day or two. It is particularly effective for solid concrete floor slabs that have dropped. While not suitable for every geological profile, it is a powerful tool in the engineer’s arsenal that avoids traditional excavation.

When Is Underpinning Necessary?

To understand why we seek alternatives, we must understand the alternative itself. What is underpinning on a house? It is the process of extending the existing foundation depth to reach a stable soil stratum. It is the “nuclear option” of structural repair. While it provides a robust, permanent solution, it is labour-intensive and costly.

Clients often ask what does underpinning involve in terms of site impact. It requires excavation beneath the existing footings in a specific sequence of “bays” or “pins,” or the installation of piles and needle beams. It is significant construction work. Therefore, if the question can subsidence be fixed without underpinning can be answered in the affirmative through drain repairs or tree management, it is always the preferred route for insurers and homeowners alike.

Conclusion

The structural integrity of a building is non-negotiable. However, the method of achieving stability varies. Can subsidence be fixed without underpinning? In many cases, yes. By accurately diagnosing the cause—whether it is a thirsty tree or a leaking pipe—we can often stabilize the property by addressing the environmental factors rather than altering the structure.

However, should these measures fail to arrest the movement, one must be prepared to answer what is underpinning on a house and proceed with the necessary engineering works. But before you commit to the cost and disruption of what does underpinning involve, ensure that a qualified structural engineer has thoroughly explored all other avenues.

Subsidence is perhaps the most dreaded word in the lexicon of UK property ownership. For anyone owning a Victorian terrace in North London or a period property on the shrinkable clay soils of the South East, the appearance of diagonal cracks around door frames or windows is a call to action, not a cosmetic nuisance. When the structural integrity of a building is compromised by ground movement, the solution often lies in strengthening the very roots of the property. This brings us to the fundamental question: what is underpinning?

It is a term frequently bandied about by surveyors and structural engineers, yet it is often misunderstood by the layperson. What is underpinning represents a significant structural intervention, essential for halting movement and restoring stability to a compromised asset.

Defining the Core Concept: What Is Underpinning?

To understand the remedy, one must understand the failure. Many period properties in London were built on shallow footings that simply do not meet modern standards, especially given the volatility of our clay-rich subsoils. In this context, what is underpinning? It is the process of strengthening and stabilizing the foundation of an existing building or other structure.

This is achieved by extending the foundation in depth or breadth so that it rests on more supportive soil strata or distributes its load across a greater area. When a client asks what is underpinning, we are discussing a method to bypass the unstable soil directly beneath the existing footings—whether that instability is caused by tree root desiccation, leaking drains washing away fines, or simple soil compaction.

The Technical Perspective: What Is Underpinning in Construction?

From an engineering standpoint, the definition becomes more granular. What is underpinning in construction refers to a range of specific methodologies, not a single technique. It is the transfer of the building’s load from the old foundations to new, deeper ones.

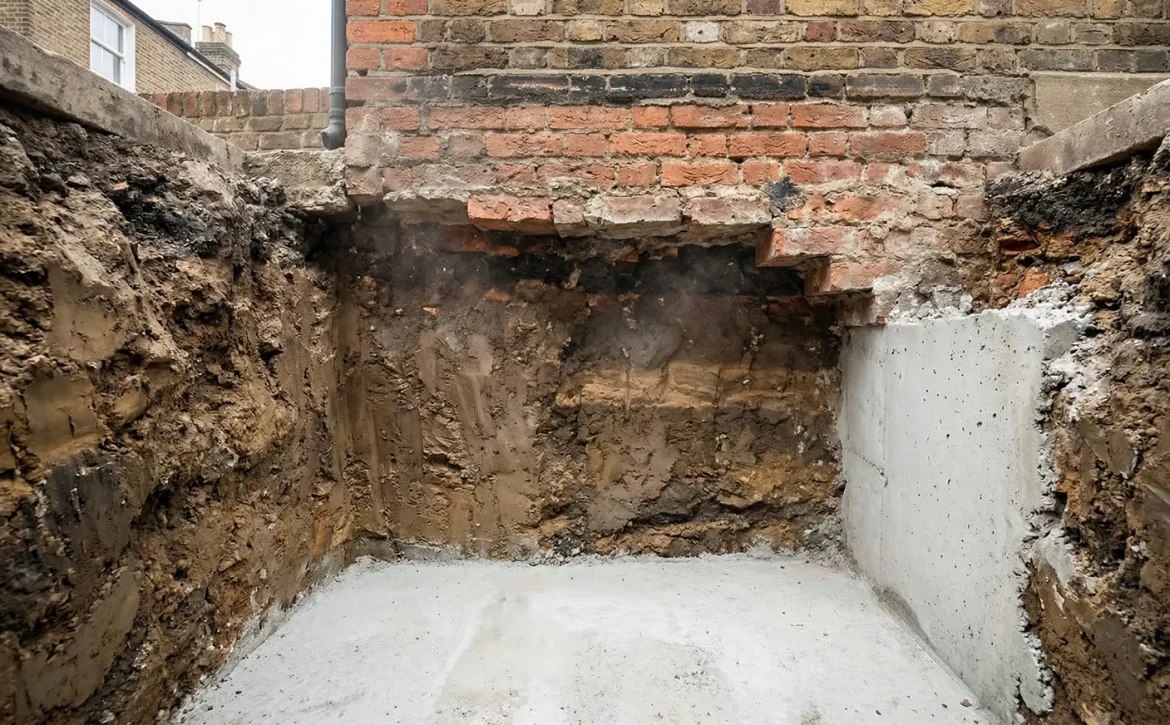

In the UK construction sector, this is most commonly achieved via “mass concrete” underpinning—excavating box-shaped voids (bays) beneath the existing footings and filling them with concrete in a strategic sequence to avoid collapse. However, what is underpinning in construction can also refer to more complex solutions like mini-piling or beam and base methods, particularly when we are dealing with deep subsidence where good ground is found only at significant depths, common in parts of the Thames Valley.

Residential Application: What Is Underpinning a House?

Applying these heavy civil engineering principles to a domestic setting requires precision. What is underpinning a house involves a meticulously staged operation. Unlike a new build, we are working with a live load. The house is heavy, and the ground is moving.

When we talk about what is underpinning a house, we are often addressing the specific interaction between the structure and its environment. For instance, if you are planning a basement conversion in a terrace, underpinning is necessary to lower the floor level safely. Or, if a large oak tree has sucked the moisture out of the clay causing the corner of your home to drop, what is underpinning a house becomes the remedial action to arrest that movement before the masonry fails completely.

The Mechanics: How Does Underpinning Work?

The physics behind the process relies on transferring load paths. How does underpinning work in practice? If we look at the traditional mass concrete method, we excavate underneath the existing footing in short sections, known as “pins” or “bays,” typically 1 to 1.2 meters in length. We never excavate the whole length of a wall at once, as the building would collapse.

Once the excavation reaches stable ground, we pour concrete to within a few inches of the underside of the old foundation. The critical final step of how does underpinning work is the “dry packing.” A semi-dry sand and cement mix is rammed into the gap between the new concrete and the old footing. This ensures the load is effectively transferred downwards. In piling scenarios, how does underpinning work involves drilling steel-encased concrete piles through the weak soil until they hit bedrock or stiff clay, and then linking these piles to the house via a reinforced concrete needle beam.

The Financial Reality: Does Underpinning Devalue Property?

This is the question that keeps homeowners awake at night. Does underpinning devalue property? The market perception here is complex. Historically, there was a significant stigma attached to underpinned houses. Buyers worried about future movement and insurance premiums.

However, we must look at this logically. An underpinned house is structurally more stable than a neighboring property that has not been underpinned but sits on the same dodgy soil. So, does underpinning devalue property? In the short term, it can reduce the pool of potential buyers, as some mortgage lenders have stricter criteria. However, a property with active, untreated subsidence is essentially unsellable to anyone but cash buyers looking for a steep discount.

If the work is carried out by a reputable contractor, signed off by a structural engineer, and comes with a Certificate of Structural Adequacy, the value is preserved. Ultimately, does underpinning devalue property less than a collapsing wall? The answer is an emphatic no. It restores the asset to a mortgageable condition.

Conclusion

Subsidence is not a problem that solves itself. When cracks appear, understanding what is underpinning is the first step toward a solution. It is a precise, engineered response to ground failure. Whether through mass concrete or piling, it provides the solid footing your property requires to withstand the shifting London geology. Do not fear the process; fear the inaction.

Connecting the Two Basement excavation is a crucial segment of construction since there is limited room in the urban centers forcing developers to look downwards. Nevertheless, excavating into the ground presents some special issues, most of which are centered at the performance and characteristics of the ground. This is where the geotechnical engineers are able to step in and make their input felt.

While the houses that are relatively old have a certain beauty and history they hardly fulfill the standards of modern construction engineering. When embarking on the process of creating or remodeling a basement in an old home, one of the most important considerations is with regards to the reinforcement of the foundation and frame. In this blog, we will try to explain technical aspects and peculiarities which should be considered to retrofit, or strengthen an older home for creating new basement.

Thus, the commercial real estate area, where square footage would mean efficiency in operation and the corresponding increase in profitability, the practice of basement excavation has become more effective. Unlike other expansions which actually involve expensive purchases of land or inconvenient structural additions such as extending a building up, basement excavation sleeps on the potential of the below ground space, allowing businesses to grow and diversify without having to give away precious above ground space.

Imagine this: You’ve just invested in digging a new basement, you have added your living square footage and value to your home. You are looking forward to the prospects – a home cinema, a home office, or even a comfortable bedroom. But then reality hits. Any noise is magnified; the sound of footsteps above is like thunder, the noise the HVAC system makes is louder than music, and it is possible to hear your neighbors talking to the man who cuts the grass. All at once, your dream basement looks and feels more like an acoustics nightmare.

Picture this: one can watch a bunch of labourers with hoes and pickaxes, toiling and spading the ground to make a basement. Their brows glisten with sweat as they bend over to dig holes in the soil at the heat of the sun moving tons of soil one shovel at a time. Nowadays, one operator is comfortably seated in an air-conditioned cab and then controlling the movement of a huge excavator at a distance, while sophisticated algorithms are helping identify the best approach to dig in real-time.

Basements, which are usually seen as dark, musty and unused places, are actually full of potential once they are dug correctly and looked after properly.If one develops the right microclimate in these dug out areas, they will be transformed into lively and important sections of any homestead improving its worth and how comfortable it can be for anyone living there.This paper gives a detailed account of digging out a basement, the underlying science behind it.
